Innovative solutions for scanning dangerous and inaccessible cavities in underground mining operations
Easily export to DXF or Point Cloud
Scan 16° in a single pass, faster and more accurate than ever before!
Maintains scanner orientation and positional accuracy using IMU technology and dead reckoning.
See it all live as the scanner is deployed.
Fits in standard NQ, HQ drill holes or any 3” borehole.

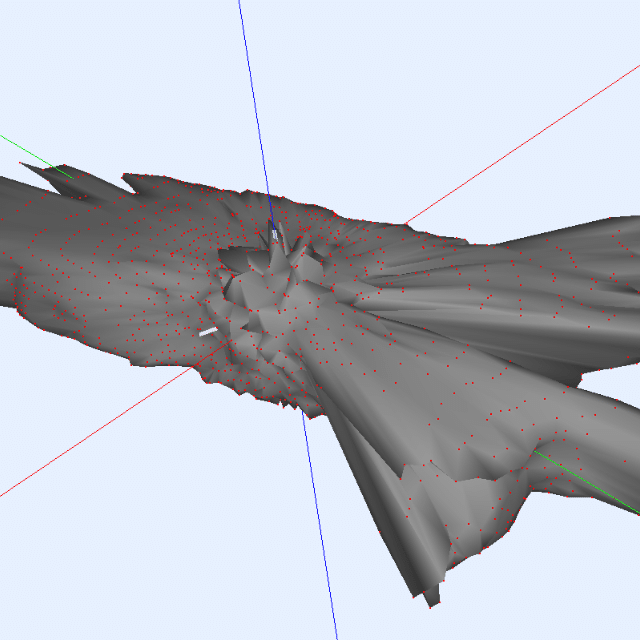

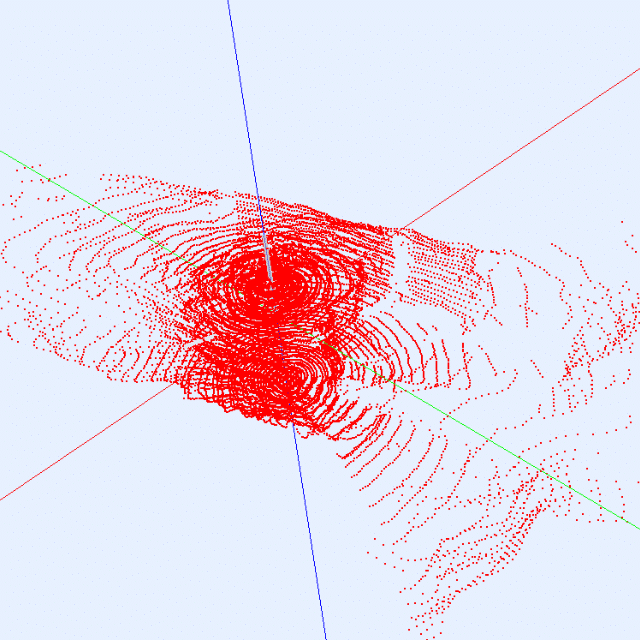

Easily export to DXF or Point Cloud
Scan 16° in a single pass, faster and more accurate than ever before!
Maintains scanner orientation and positional accuracy using IMU technology and dead reckoning.
See it all live as the scanner is deployed.
Fits in standard NQ, HQ drill holes or any 3” borehole.
Drill holes from AQ all the way up to CHD 134 — various size Hole Expanders available. Boreholes from 2″ to 6″ (and above)
Inclination: ± 0.2°
Depth: ± 0.02% / 100 m
Accuracy: 2%

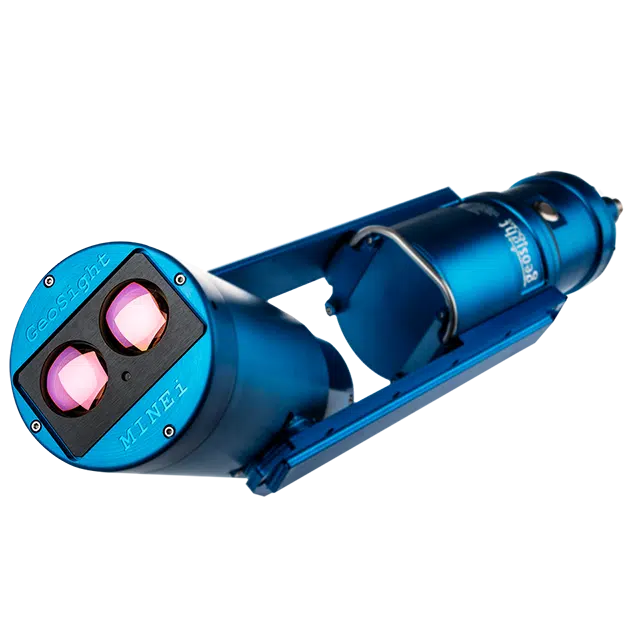

Diameter 160mm | Length 580mm | Weight 2.5kg

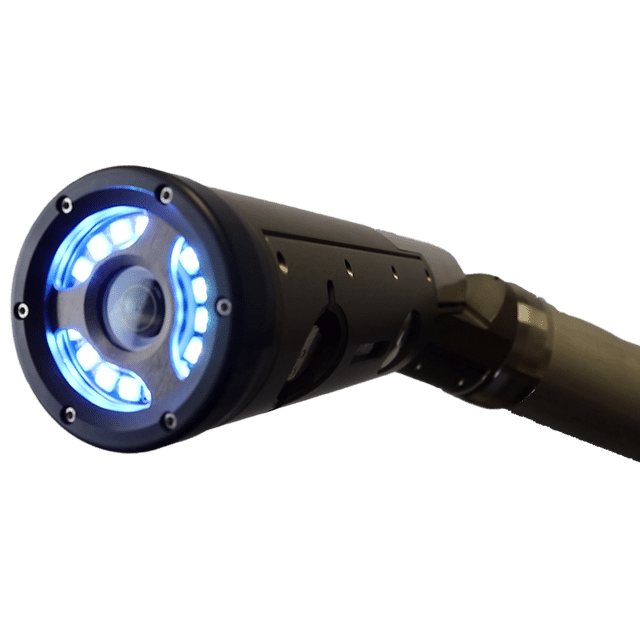

Diameter 40mm | Length 610mm | Weight 2.1kg
Length +100m | Weight 6.25kg / 100m | Spool Height 25″ (635mm) | Spool Width 8″ (203mm)

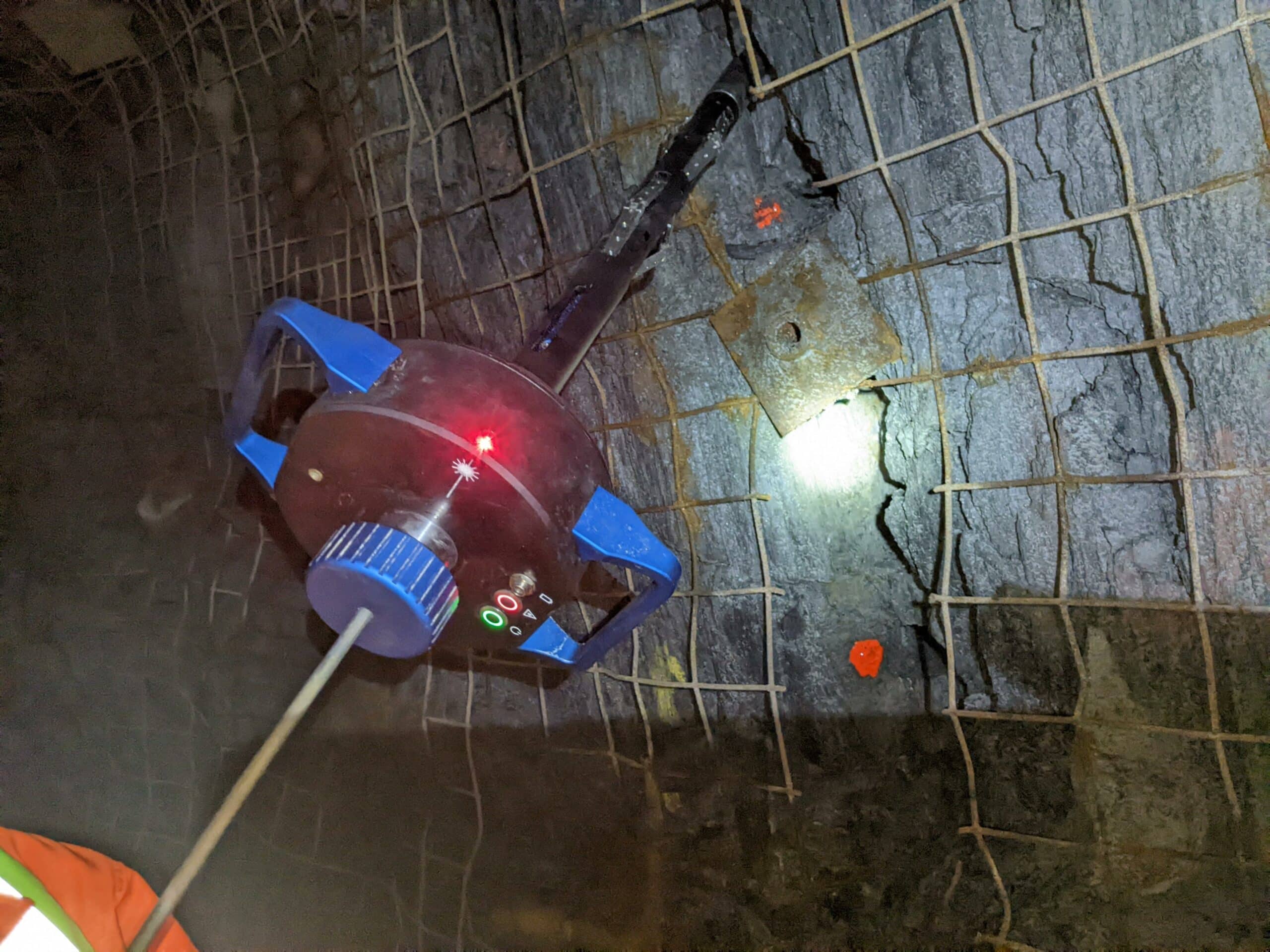

Scan dangerous and inaccessible cavities in underground mining operations.
Perform the regular 3D laser mapping of underground voids, shafts, stopes and ore passes quickly, safely and with accuracy.
Fast, real-time data acquisition decreases operator exposure time underground, reducing potential risk to the operator.
Diameter 40mm | Length 610mm | Weight 2.1kg
Acquired data gives insight to stope production, helps extend site usable life, reduce dilution, calculate backfill volume, and investigate backfill and blast efficiency.
Rugged, remotely operated, and completely cable free. Eliminates the need to send operators to potentially dangerous areas.
