| < 4 Kg | 60 Min | C2 | 5800 |
| MTOW | MAX. FLIGHT TIME | CLASS | MAX. ALTITUDE |
| < 4 Kg | 60 Min | C2 | 5800 |
| MTOW | MAX. FLIGHT TIME | CLASS | MAX. ALTITUDE |
Meet the LEGO of Drones, a marvel of German engineering! Its compact, modular, and lightweight design effortlessly caters to varied use cases. Committed to ensuring your operations ascend to new heights of technological brilliance with our smooth, efficient after-sales service.
Experience Unmatched Precision with RC08‘s Smart Sensor Integration. Navigate assuredly with our expertly assembled sensor suite, featuring a Magnetometer, GNSS, Barometer, Heated IMU, Distance and Altitude LiDAR, plus an Optical Flow Camera for comprehensive frontal collision avoidance. All meticulously engineered to enhance the accuracy and dependability of your aerial missions, ensuring they are conducted with the utmost confidence and reliability.
Elevate UAV missions with Roter microTether! Offering up to 1400W for light industrial UAVs and available in 50m/70m lengths, the RC08 defies battery constraints, housed in a compact, IP67 stackable case, ensuring unparalleled operational endurance.
| RESOLUTION | 640 x 512 PIXEL |
| IMAGE SENSOR | 1/3" CMOS |
| SYSTEM SIGNAL | 1080P 60FPS |
| LENS | 10X OPTICAL ZOOM |
| INFRARED SPECTRAL RANGE | 8MM-14MM < 40-60MK SENSITIVITY |

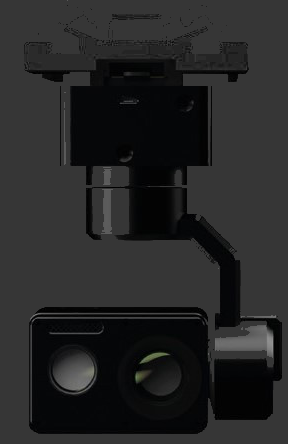

Discover our versatile payloads with an adjustable payload rail, designed to amplify your aerial data collection. Our Thermal payload captures accurate heat distributions, skillfully designed to boost your drone‘s functionality across varied applications while offering the flexibility of an adjustable payload rail.
| ROTOPRAXIS DAIMETER | 730 mm |
| PACKAGE SIZE | 480 mm × 150 mm × 150 mm (WITH HANDLE) |
| READY TO FLY | 520 mm × 520 mm × 355 mm |
| PROPELLER | 17“ CARBON |
| MOTORS | BRUSHLESS MOTORS |
| SMART BATTERY | Li-ION STANDARD 10,000 mAh / XL 15,000 mAh |
| WEIGHT WITH BATTERY | 2.8 Kg |
| WEIGHT WITHOUT BATTERY | 1.8 Kg |
| MAX. TAKE-OFF WEIGHT | < 4 Kg |
| SPEED | 28 m/s |
| CLIMBING RATE | 4.8 m/s |
| MAX. ALTITUDE | 5800 M AGL |
| OPERATION TEMP. | - 20 TO + 50 °C |
| MAX. FLIGHT TIME | 45 min (STANDARD), 60 min (XL) |
| FREQUENCY | 2.4 GHz CONTROL AND VIDEO LINK |
| OPERATION RANGE | 10 Km |
| ROTOPRAXIS DAIMETER | 730 mm |
| PACKAGE SIZE | 480 mm × 150 mm × 150 mm (WITH HANDLE) |
| READY TO FLY | 520 mm × 520 mm × 355 mm |
| PROPELLER | 17“ CARBON |
| MOTORS | BRUSHLESS MOTORS |
| SMART BATTERY | Li-ION STANDARD 10,000 mAh / XL 15,000 mAh |
| WEIGHT WITH BATTERY | 2.8 Kg |
| WEIGHT WITHOUT BATTERY | 1.8 Kg |
| MAX. TAKE-OFF WEIGHT | < 4 Kg |
| SPEED | 28 m/s |
| CLIMBING RATE | 4.8 m/s |
| MAX. ALTITUDE | 5800 M AGL |
| OPERATION TEMP. | - 20 TO + 50 °C |
| MAX. FLIGHT TIME | 45 min (STANDARD), 60 min (XL) |
| FREQUENCY | 2.4 GHz CONTROL AND VIDEO LINK |
| OPERATION RANGE | 10 Km |
